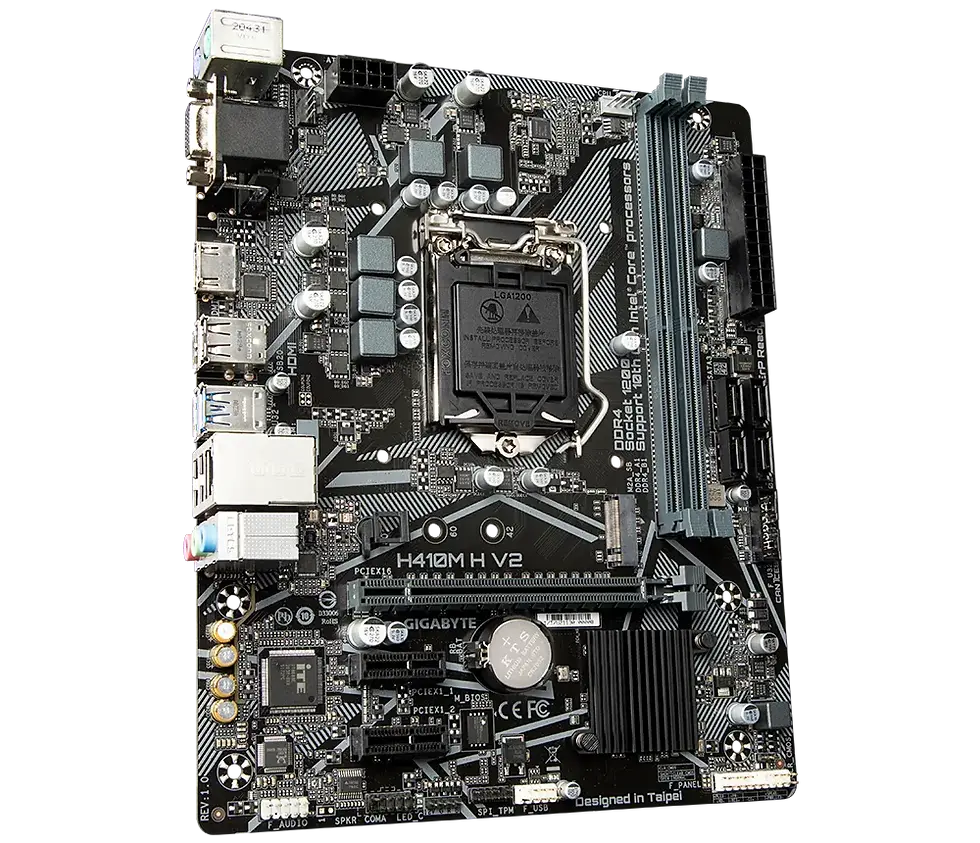

GIGABYTE H410M H V2 (rev. 1.0)

GIGABYTE H410M H V2 (rev. 1.0)

₹9,360.00 Regular Price
₹5,099.00Sale Price
Intel® Ultra Durable Motherboard with Intel® GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

  • Supports 10th Gen Intel®Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
Quantity

  • Tech Specs



    Category Specification
    CPU - Supports 10th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, Celeron® (LGA1200)- L3 cache varies by CPU
    Chipset Intel® H470 Express
    Memory - Core™ i9/i7: DDR4 2933/2666/2400/2133 MHz- Core™ i5/i3/Pentium®/Celeron®: DDR4 2666/2400/2133 MHz- 2 x DDR4 DIMM sockets, up to 64 GB (32 GB per DIMM)- Dual channel- ECC Un-buffered DIMM support (non-ECC mode)- Non-ECC Un-buffered DIMM support- XMP supported
    Graphics (Integrated) Intel® HD Graphics:- 1 x D-Sub: max 1920x1200@60Hz- 1 x HDMI: max 4096x2160@30Hz- HDMI 1.4, HDCP 2.3- Max shared memory: 512 MB
    Audio - Realtek® HD Audio Codec- Supports 2/4/5.1/7.1-channel (requires configuration in audio software)
    LAN Intel® GbE LAN (1 Gbit/100 Mbit)
    Expansion Slots - 1 x PCIe x16 (PCIe 3.0)- 2 x PCIe x1 (PCIe 3.0)- ASPM L1.2 power management supported
    Storage Interface - 1 x M.2 (Socket 3, M key, 2242/2260/2280, SATA & PCIe x4/x2 SSDs)- 4 x SATA 6Gb/s- RAID 0/1/5/10 supported- Intel® Optane™ Memory Ready- ASPM L1.2 support for M.2
    USB Ports - 4 x USB 3.2 Gen 1 (2 rear, 2 via header)- 6 x USB 2.0/1.1 (4 rear, 2 via header)
    Internal I/O - 1 x 24-pin ATX power- 1 x 8-pin ATX 12V- 1 x CPU fan header- 1 x system fan header- 1 x RGB LED header- 4 x SATA 6Gb/s- 1 x front panel header- 1 x front panel audio header- 1 x USB 3.2 Gen 1 header- 1 x USB 2.0 header- 1 x TPM header (GC-TPM2.0 SPI modules only)- 1 x serial port header- 1 x Clear CMOS jumper

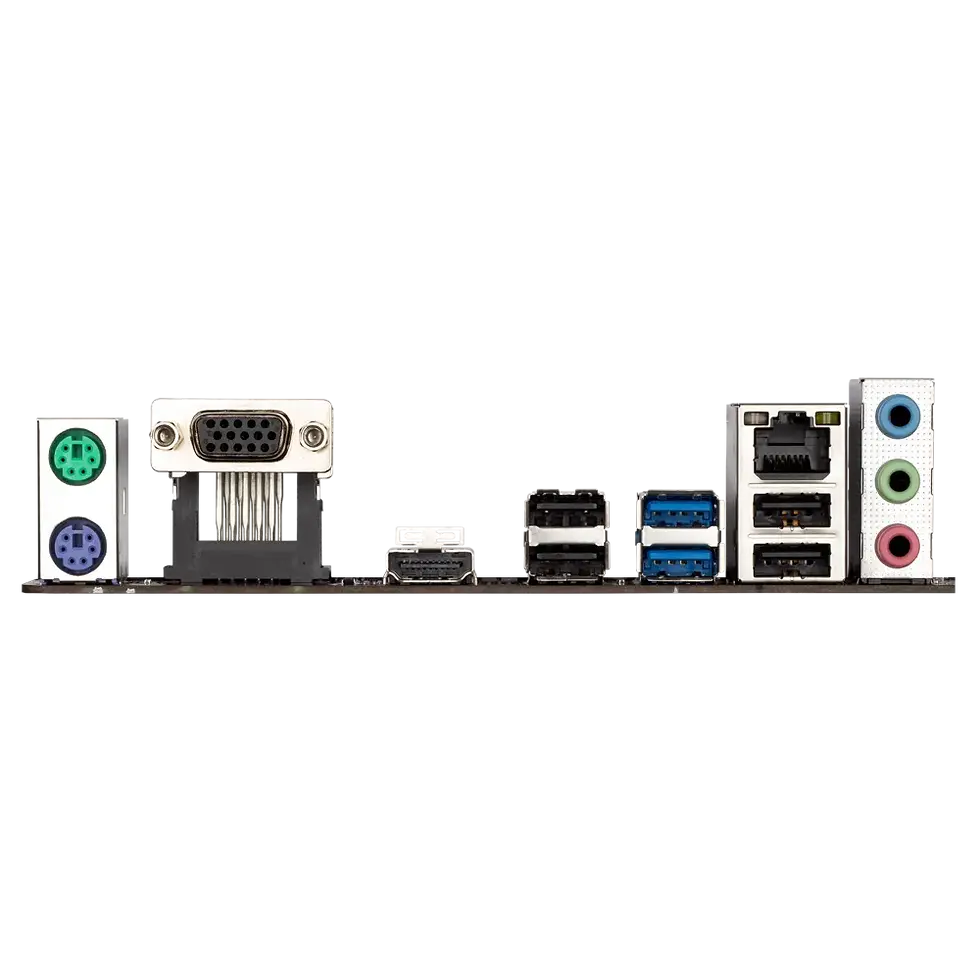

    Back Panel I/O - 1 x PS/2 Keyboard/Mouse- 1 x D-Sub- 1 x HDMI- 2 x USB 3.2 Gen 1- 4 x USB 2.0/1.1- 1 x RJ-45 LAN- 3 x audio jacks
    I/O Controller iTE® I/O Controller Chip
    H/W Monitoring - Voltage, temperature, fan speed detection- Overheat & fan fail warning- Fan speed control (depends on cooler)
    BIOS - 256 Mbit Flash- AMI UEFI BIOS- Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features - APP Center Support (features vary by model)Includes: @BIOS, Ambient LED, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Info Viewer, Q-Flash, Xpress Install
    Bundled Software - Norton® Internet Security (OEM)- cFosSpeed
    Operating System Windows 10 64-bit
    Form Factor Micro ATX (22.6 cm x 18.5 cm)
